Recently I included Kamon’s instrumentation tools into an Akka project. I posted the sample project on github. I’ll do a quick walk through of the process in this post along with my initial impressions of Kamon.

I started with the documentation in Kamon’s plain application installation guide. I added the latest Kamon bundle in my build.sbt. This includes all the instrumentation available in Kamon.

libraryDependencies += "io.kamon" %% "kamon-bundle" % "2.0.6"

Since I used SBT, next I installed the SBT plugin as the installation guide recommended (in plugins.sbt).

addSbtPlugin("io.kamon" % "sbt-kanela-runner" % "2.0.6")

I created a sample application with two actors that send messages to each other and initialized Kamon at the beginning of application launch.

package com.example

import akka.actor.ActorSystem
import kamon.Kamon
import scala.concurrent.duration._

object Main extends App {
  Kamon.init()
  val actorSystem: ActorSystem = ActorSystem.create("helloAkka")
  import actorSystem.dispatcher
  val receiver = actorSystem.actorOf(SampleActor.props, "receiver")
  val sender = actorSystem.actorOf(SampleActor.props, "sender")
  actorSystem.scheduler.schedule(1.seconds, 10.seconds) { receiver.tell("Hello", sender) }
}
package com.example

import akka.actor.{Actor, ActorLogging, Props}
import kamon.Kamon
import kamon.trace.Span

object SampleActor {
  def props: Props = Props(new SampleActor())
  case class Echo(s: String)
}

class SampleActor() extends Actor with ActorLogging {
  def receive: Receive = {
    case SampleActor.Echo(s) => log.info("received {}", s)
    case s: String =>
      val origin = sender()
      origin ! SampleActor.Echo(s)
  }
}

Next I added the Prometheus metrics reporter and Zipkin spans reporter. Other options included using InfluxDB as your metrics reporter instead of Prometheus, and Jaeger instead of Zipkin. Additionally, there is the option of using a combined reporter like Kamon’s APM or Datadog, rather than separate metrics and spans reporters. For my initial trial, I just went with Prometheus and Zipkin. I added those to my build.sbt.

libraryDependencies += "io.kamon" %% "kamon-prometheus" % "2.0.1"
libraryDependencies += "io.kamon" %% "kamon-zipkin" % "2.0.1"

I set up a docker-compose file to provide the Prometheus and Zipkin services. Kamon will push the span data to Zipkin, but Prometheus scrapes the data from Kamon. Since I was using Docker desktop and Prometheus was running in a container, while my application was running on my host system, I configured Prometheus to scrape from host.docker.internal:9095. I also included Grafana to create some really nice graphs from the data gathered by Prometheus.

version: "3"

services:
  prometheus:
    image: prom/prometheus
    volumes:
      - "./prometheus.yml:/etc/prometheus/prometheus.yml"
    ports:
      - "9090:9090"
  zipkin:
    image: openzipkin/zipkin
    ports:
      - "9411:9411"
  grafana:
    image: grafana/grafana
    ports:
      - "3000:3000"

The prometheus.yml file looked like this:

scrape_configs:
  - job_name: example
    scrape_interval: 5s
    static_configs:
      - targets:
          - host.docker.internal:9095

I created an application.conf file in my resource directory to configure the Kamon instrumentation. In a production application, you would not want to use the wildcard operators to include all actors, especially with start-trace configuration. Since my sample application is small and it purpose was to explore Kamon, I left it pretty wide open.

kamon.instrumentation.akka.filters {
  actors.track {
    includes = [ "helloAkka/user/**" ]
  }
  actors.trace {
    includes = [ "helloAkka/user/**" ]
  }
  actors.start-trace {
    includes = [ "helloAkka/user/**" ]
  }
}

kanela {
  log-level = "DEBUG"
}

I also wanted to explore having the Kamon’s context information included in my application’s logging. So I included Kamon’s conversion rules in my logback.xml and added the trace ID and span ID to my log messages.

<configuration debug="false">
    <conversionRule conversionWord="traceID" converterClass="kamon.instrumentation.logback.tools.TraceIDConverter" />
    <conversionRule conversionWord="spanID" converterClass="kamon.instrumentation.logback.tools.SpanIDConverter" />
    <conversionRule conversionWord="contextTag" converterClass="kamon.instrumentation.logback.tools.ContextTagConverter" />

    <conversionRule conversionWord="contextEntry" converterClass="kamon.instrumentation.logback.tools.ContextEntryConverter" />

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>[%date{ISO8601}] [%level] [%logger] [%marker] [%thread] [%traceID] [%spanID] - %msg {%mdc}%n</pattern>
        </encoder>
    </appender>

    <appender name="ASYNC" class="ch.qos.logback.classic.AsyncAppender">
        <queueSize>8192</queueSize>
        <neverBlock>true</neverBlock>
        <appender-ref ref="STDOUT" />
    </appender>

    <root level="INFO">
        <appender-ref ref="ASYNC" />
    </root>
</configuration>

I also wanted to explore adding tags to my spans, so I updated my SampleActors to include some tags.

class SampleActor() extends Actor with ActorLogging {

  def receive: Receive = {
    case SampleActor.Echo(s) =>
      val span: Span = Kamon.spanBuilder("received-echo").tag("string-tag", "echo").start()
      Kamon.runWithSpan(span, true) {
        log.info("received {}", s)
      }

    case s: String =>
      val span: Span = Kamon.spanBuilder("received-string").tag("string-tag", "hello").start()
      Kamon.runWithSpan(span, true) {
        val origin = sender()
        origin ! SampleActor.Echo(s)
      }
  }
}

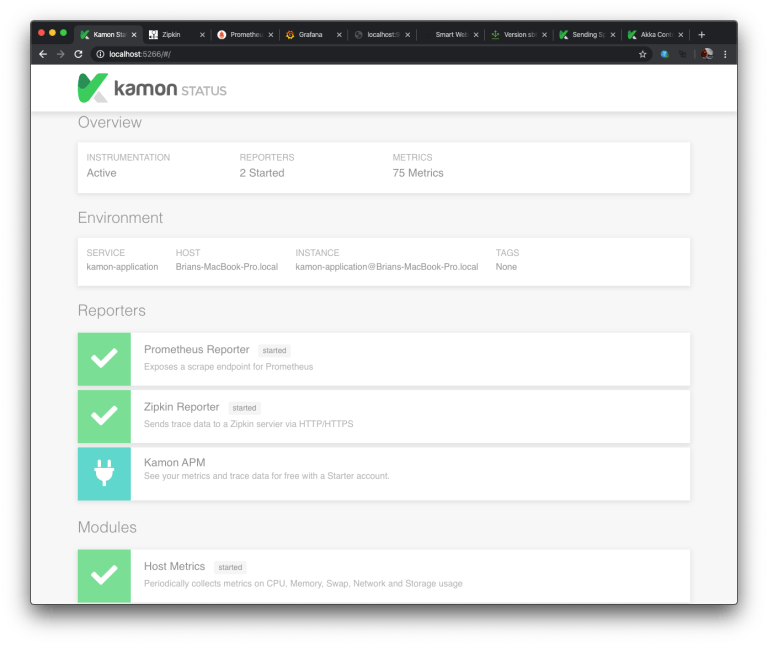

Finally, I was ready to run my application. I started it using sbt run from the command line. Then in my browser I went to localhost:5266 to view the Kamon status page (the default port for the status page) and validated Kamon was running and the reporters were started.

Kamon Status Page

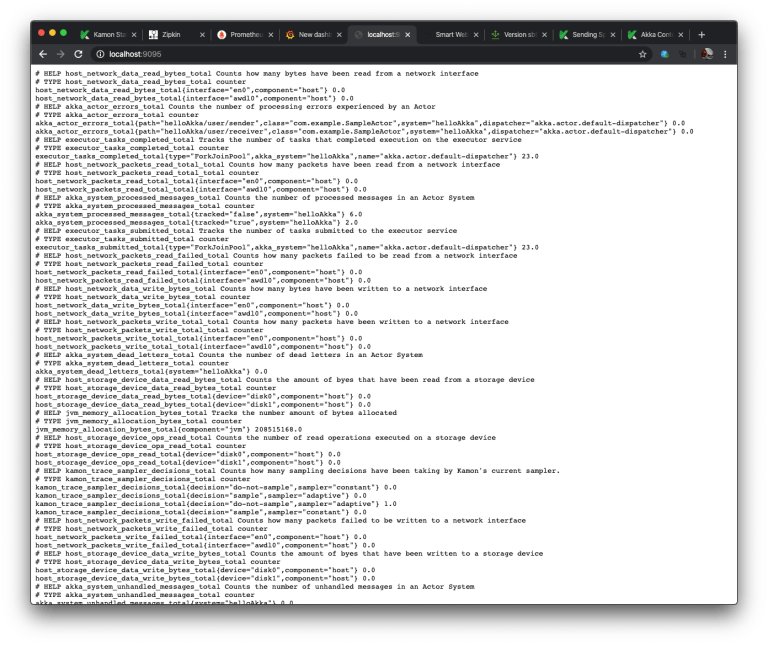

I was able to navigate to the default port that Kamon has available for Prometheus to scrape data and validate that data were indeed available. It took a few seconds until there were data available, but eventually I could see the data.

Kamon Metrics Data

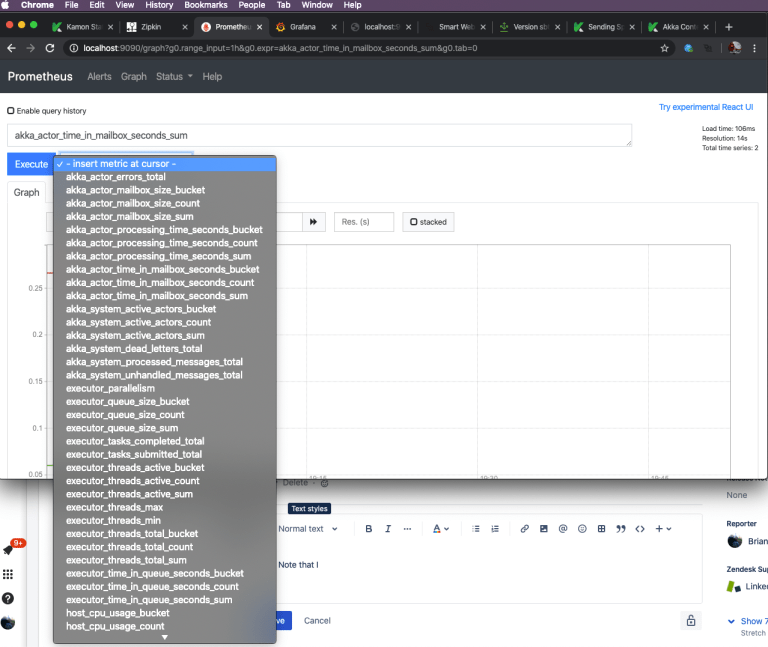

Next I went to my Prometheus service at localhost:9090 to view the data. There were quite a few metrics available.

Kamon Metrics Available in Prometheus

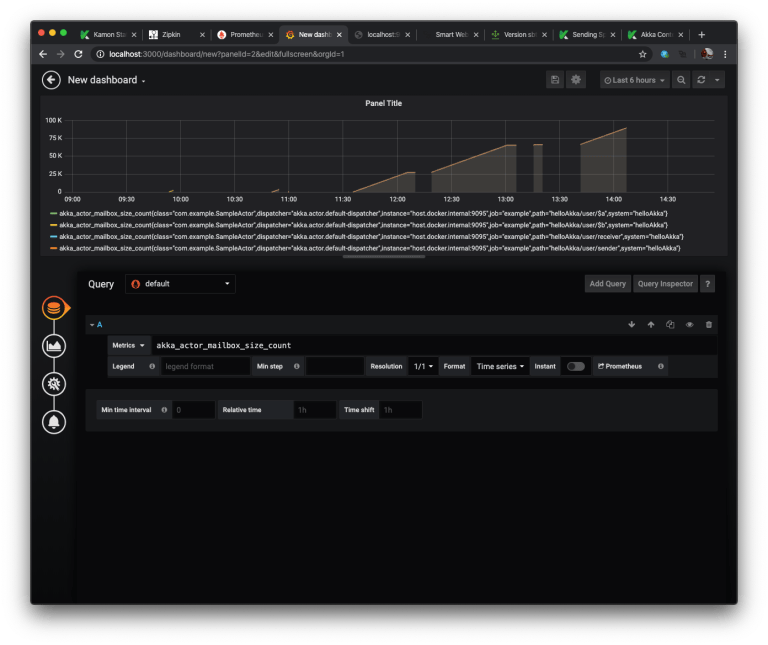

Next I went to my Grafana service on localhost:3000, created a login, and then configured it to point to the Prometheus service. I then has some really nice graphs of my metrics data.

Displaying Metrics in Grafana

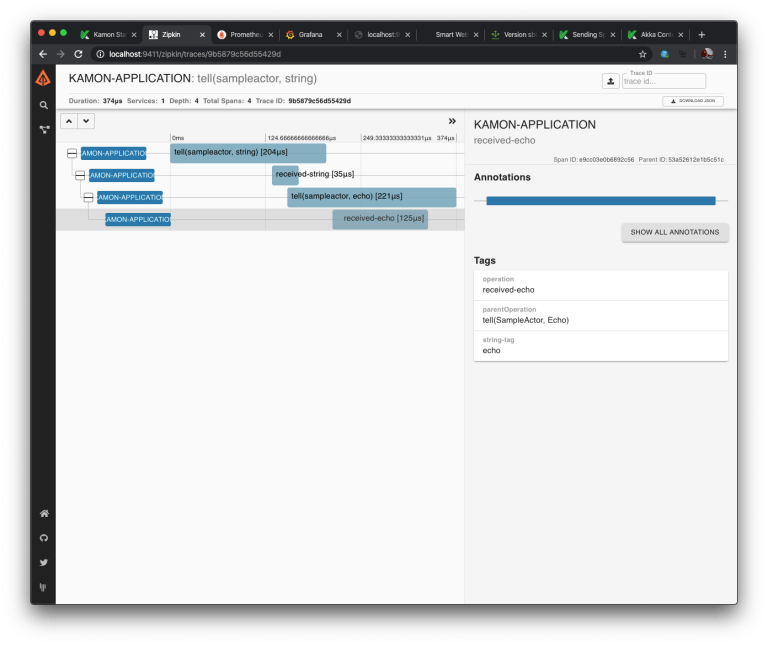

Last, I went to my Zipkin service at localhost:9411 and was able to see spans the the messages being sent in my application. I could drill down into the details of each span.

Span Data in Zipkin

My overall impressions were that the setup was pretty easy, and provided a lot of information rather quickly. As some follow-up work, I next want to start exploring the Kamon instrumentation available for Akka HTTP. It is included in the Kamon bundle, I should just need to add the configuration to my application.conf file. Likewise, there are JDBC metrics included in the bundle. These include metrics on a Hikari JDBC connection pool, as well as statement tracing. Though there is much included in the bundle, there is the option of installing only the instrumentation that you need.
